Operation Lamps
An operation lamp, also known as a surgical light, provides bright, shadow-free, and adjustable illumination essential for precise surgical procedures. Designed for optimal visibility, these lamps feature energy-efficient LED technology, with options for halogen and standard surgical lights to suit different clinical needs. With adjustable brightness and flexible positioning, they are available in ceiling-mounted, wall-mounted, and mobile stand models, ensuring consistent, high-quality lighting that enhances surgical accuracy and patient safety.
TYPES
Surgical Light

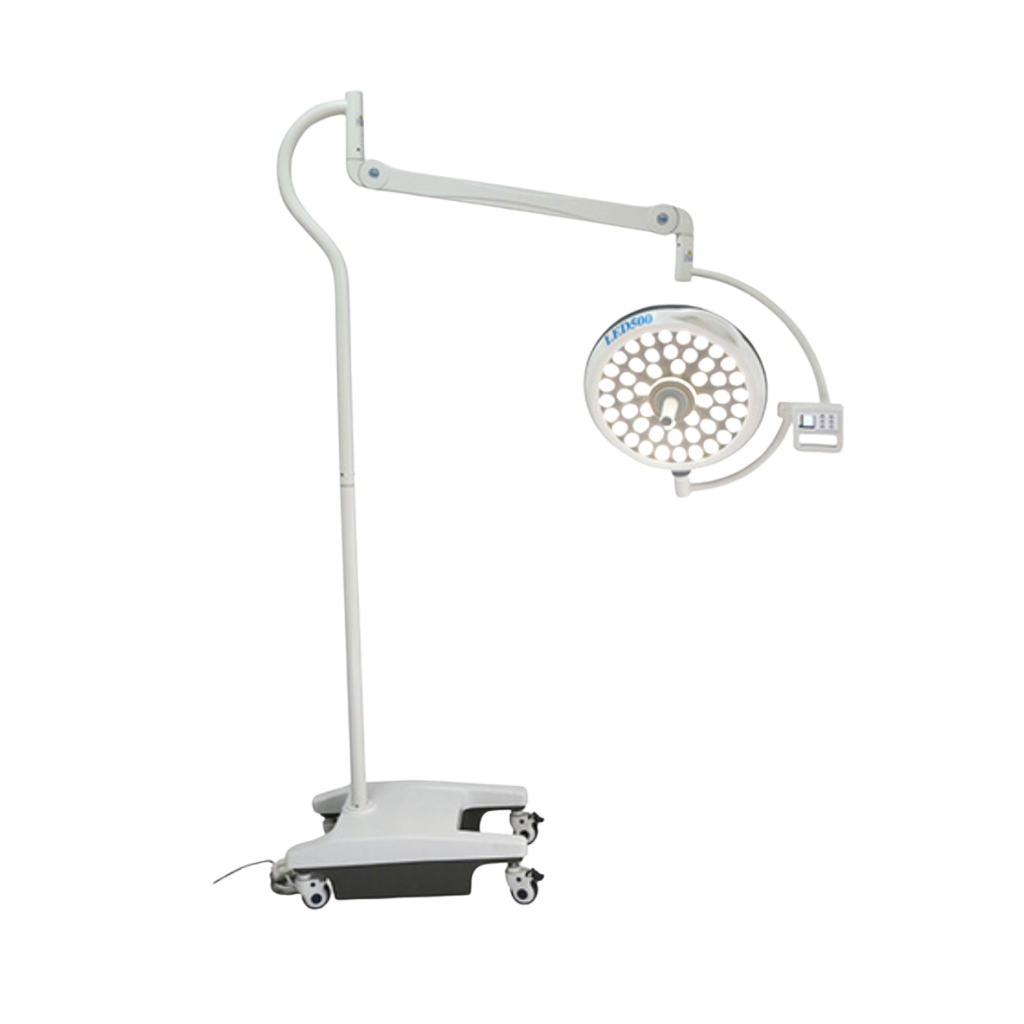

Mobile Stand LED Operation Lamp
(YDE500 E Type)
700 LED head/500 LED head
Illuminance: 160,000 Lux/140,000 Lux
Illuminance adjustable range: 25% – 100%
Color Temperature: 3,600~5,500K(±500K)
CRI: ≥95 Ra
50% spot diameter (D50): 150mm/120mm
10% spot diameter (D10): 280mm/230mm
Illumination Depth: 140cm/120cm
Ultravioletlight irradiance within 40nm wave length 0.006W/M2
Temperature at surgeon’s head: ≤ 1°C
Focus Mode: manual or electric
Power supply: 220V, 50Hz
Lamp beads power: 1W*60N/1W*45N
Input Power: 100W/80W
The average life expectancy of lamp beads: 100,000 hours
Lowest installation height: 2.8M

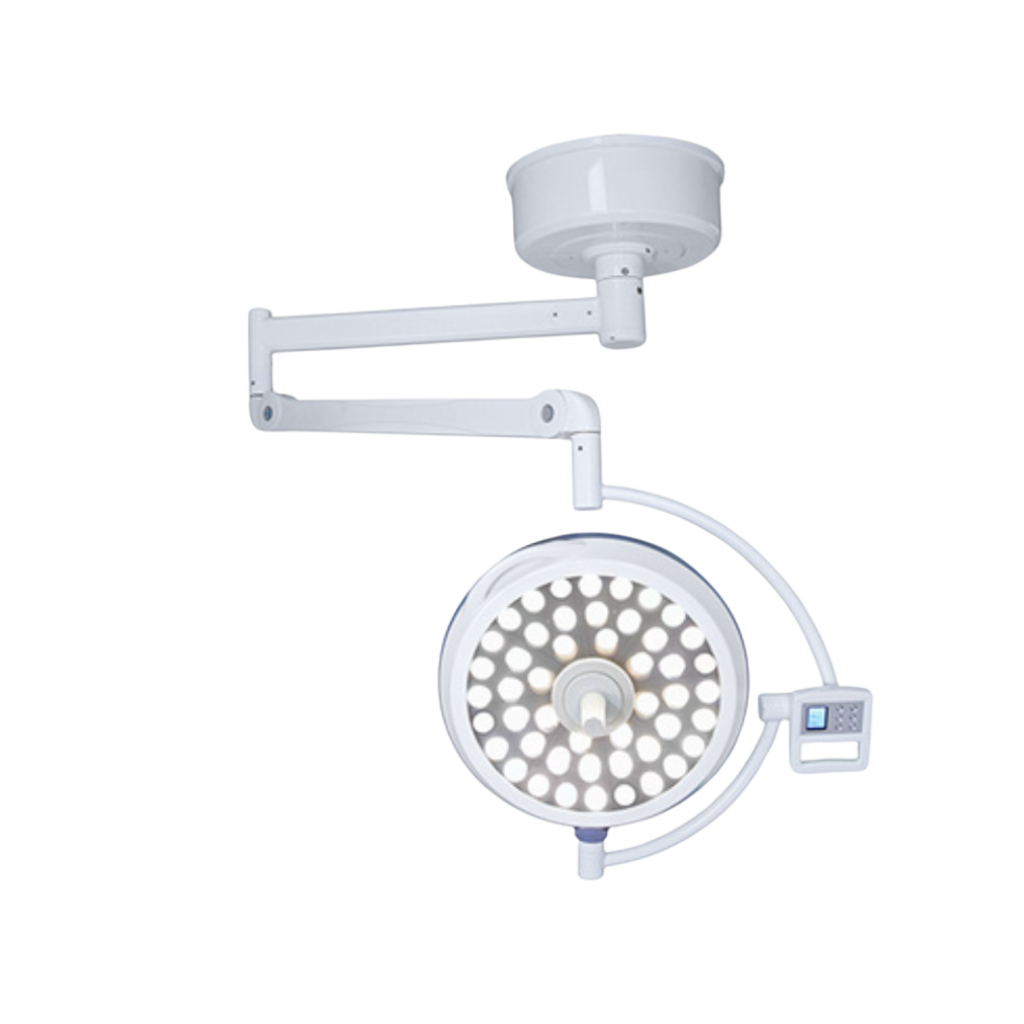

Single Heads LED Operation Lamp
(YDE700 E Type)
700 LED head/500 LED head
Illuminance: 160,000 Lux/140,000 Lux
Illuminance adjustable range: 25% – 100%
Color Temperature: 3,600~5,500K(±500K)
CRI: ≥95 Ra
50% spot diameter (D50): 150mm/120mm
10% spot diameter (D10): 280mm/230mm
Illumination Depth: 140cm/120cm
Ultravioletlight irradiance within 40nm wave length 0.006W/M2
Temperature at surgeon’s head: ≤ 1°C
Focus Mode: manual or electric
Power supply: 220V, 50Hz
Lamp beads power: 1W*60N/1W*45N
Input Power: 100W/80W
The average life expectancy of lamp beads: 100,000 hours
Lowest installation height: 2.8M

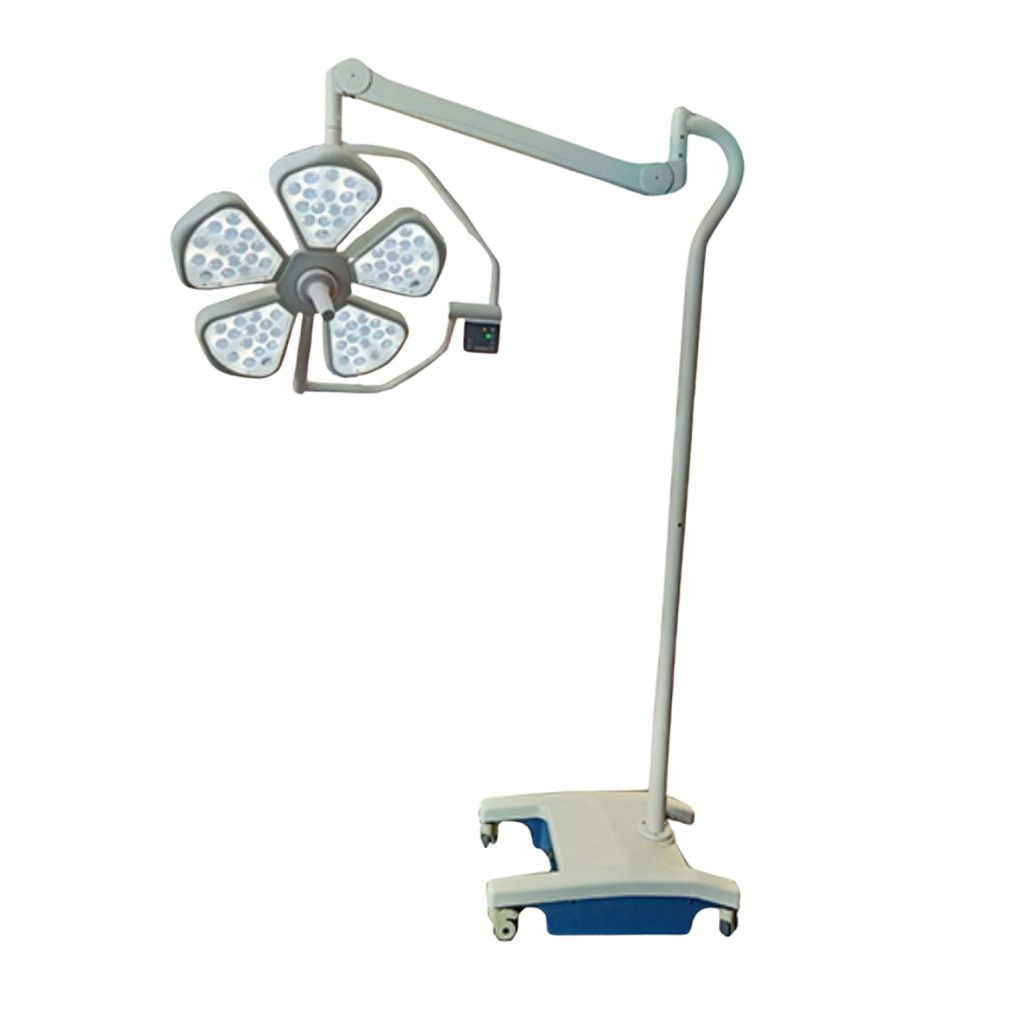

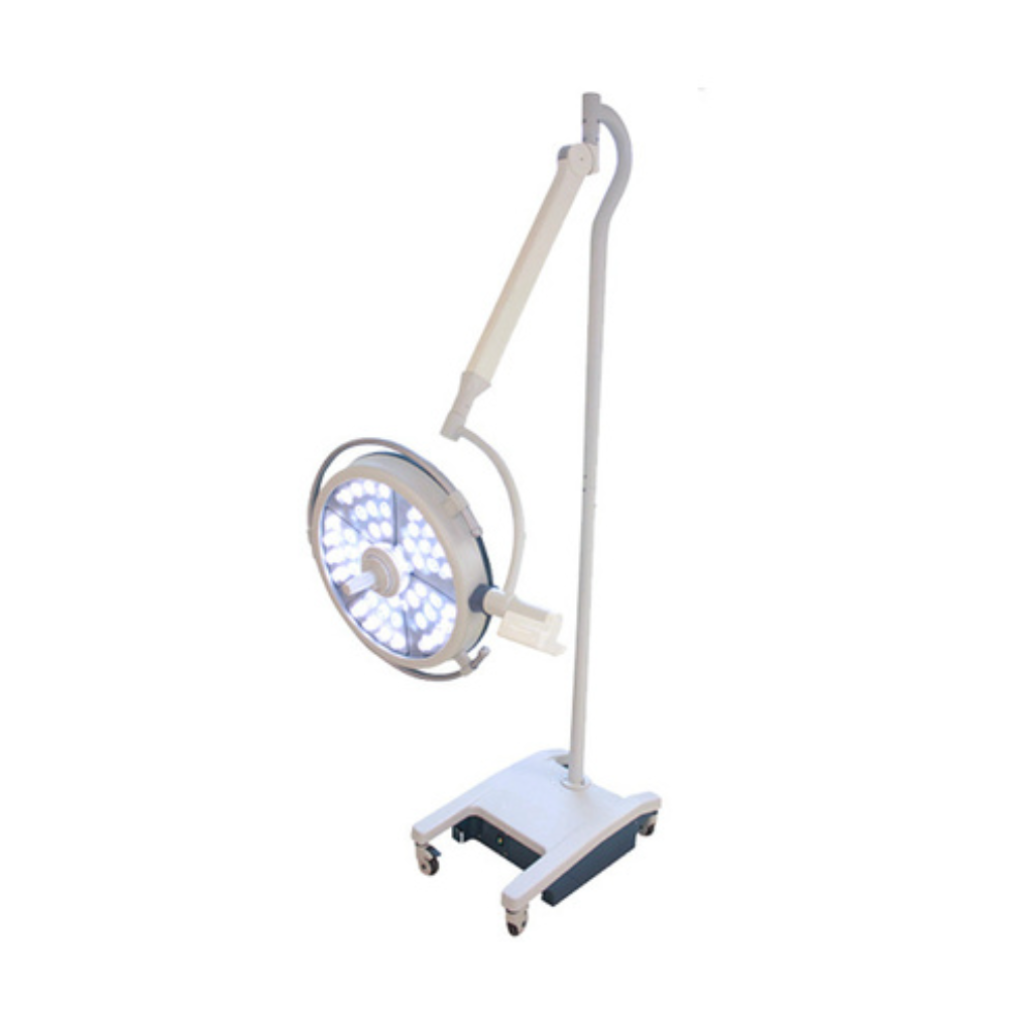

Mobile LED Operation Lamp
(YDE700/700 F Type)
700 LED head
Illuminance: 140,000 Lux
Color Temperature: 3,600~5,500K(±500K) variable
CRI: ≥95 Ra
Power of bulb: 1W*80N
50% spot diameter (D50): 150mm/120mm
10% spot diameter (D10): 280mm/230mm
Illumination Depth: 140cm/120cm
Illuminance adjustable range: 25% – 100%
Ultraviolet light irradiance within 40nm wave length ≤0.006W/M2
Temperature at surgeon’s head: ≤ 1°C
Focus system: manual or electric
Voltage: 220V
Frequency: 50Hz
Input Power: 80W
Temperature at surgeon’s head: ≤ 1°C
The average life expectancy of lamp beads: 100,000 hours
Mobile LED Operation Lamp
(YDE500D A Type)
500 LED head
Illuminance adjustable range: 5% ~ 100%
Color Temperature: 4,000~5,000K
CRI: ≥95 Ra
50% spot diameter (D50): 120mm
10% spot diameter (D10): 230mm
Illumination Depth: 120cm
Ultraviolet light irradiance within 40nm wave length 0.002W/M2
Temperature at surgeon’s head: ≤ 2°C
Focus mode: manual or electric
Power Supply: 220V, 50Hz
Lamp beads power: 1W*45N
The average life expectancy of lamp beads: 50,000 hours
Single Dome LED Operation Lamp LCD Touch Screen (YDE700/700 C Type)
700 LED head
Diameter of head: 620nm
Illuminance: 140,000 Lux
Illuminance adjustable range: 25% ~ 100%
Color Temperature: 3,500~5,500K
CRI: 95 Ra
Spot Diameter: 120~350mm
Illumination Depth: ≥150cm
LCD touch screen panel
Focus mode: automatic
Power Supply: 220V, 50Hz
Lamp beads power: 1W*78N/1W*78N
The average life expectancy of lamp beads: 50,000 hours
Lowest installation height: 2.8~3.1m

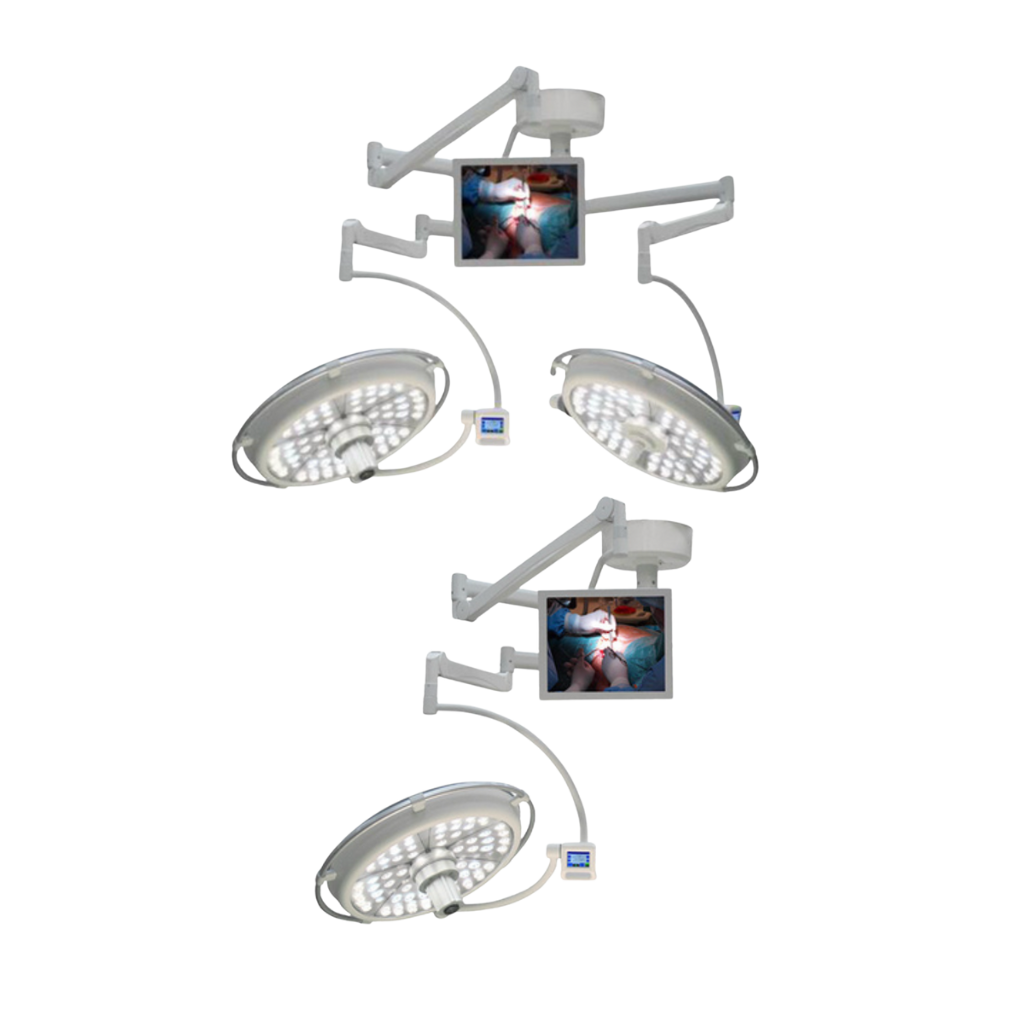

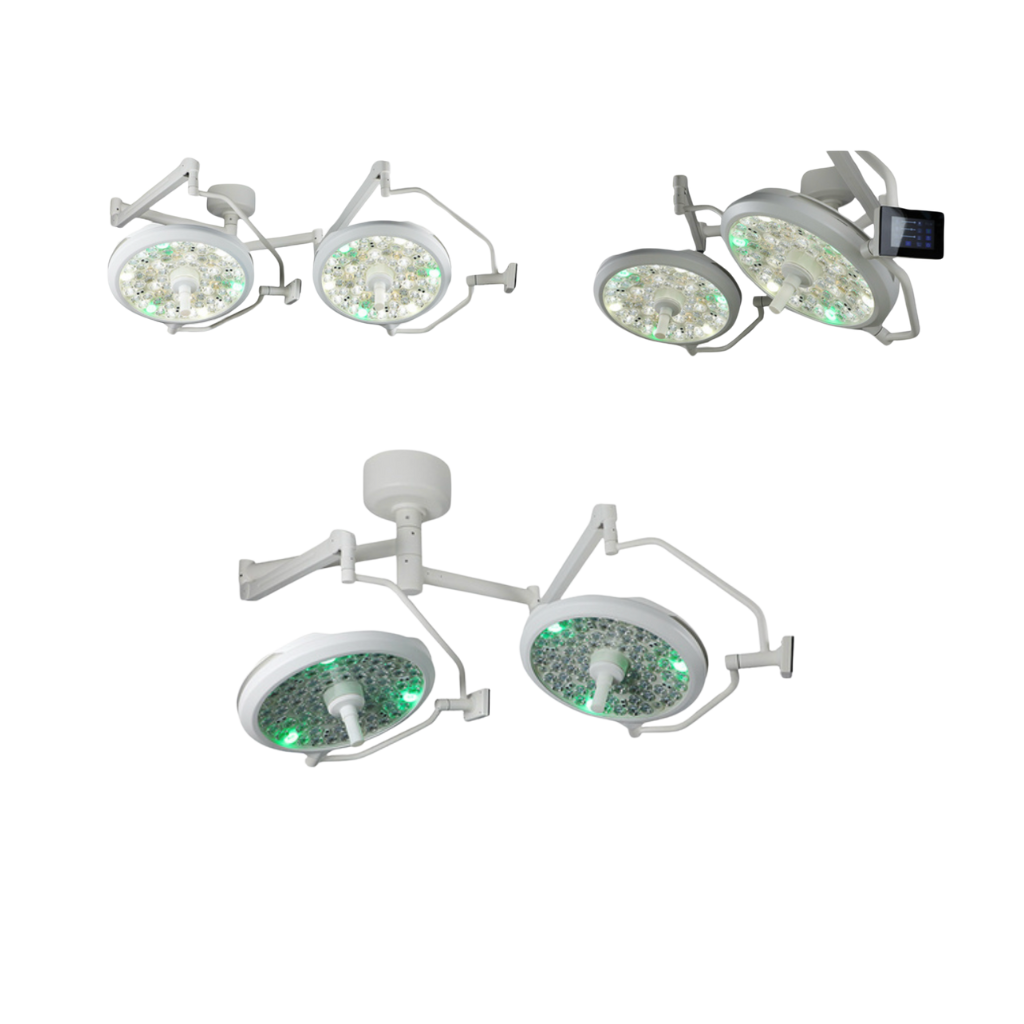

Double Dome LED Operation Lamp LCD Touch Screen
(YDE700/700 C Type)
700 LED head
Diameter of head: 620nm
Illuminance: 160,000 Lux
Illuminance adjustable range: 25% ~ 100%
Color Temperature: 3,500~5,500K
CRI: 95 Ra
Spot Diameter: 120~350mm
Illumination Depth: ≥150cm
LCD touch screen panel
Focus mode: automatic
Power Supply: 220V, 50Hz
Lamp beads power: 1W*78N/1W*78N
The average life expectancy of lamp beads: 50,000 hours
Lowest installation height: 2.8~3.1m

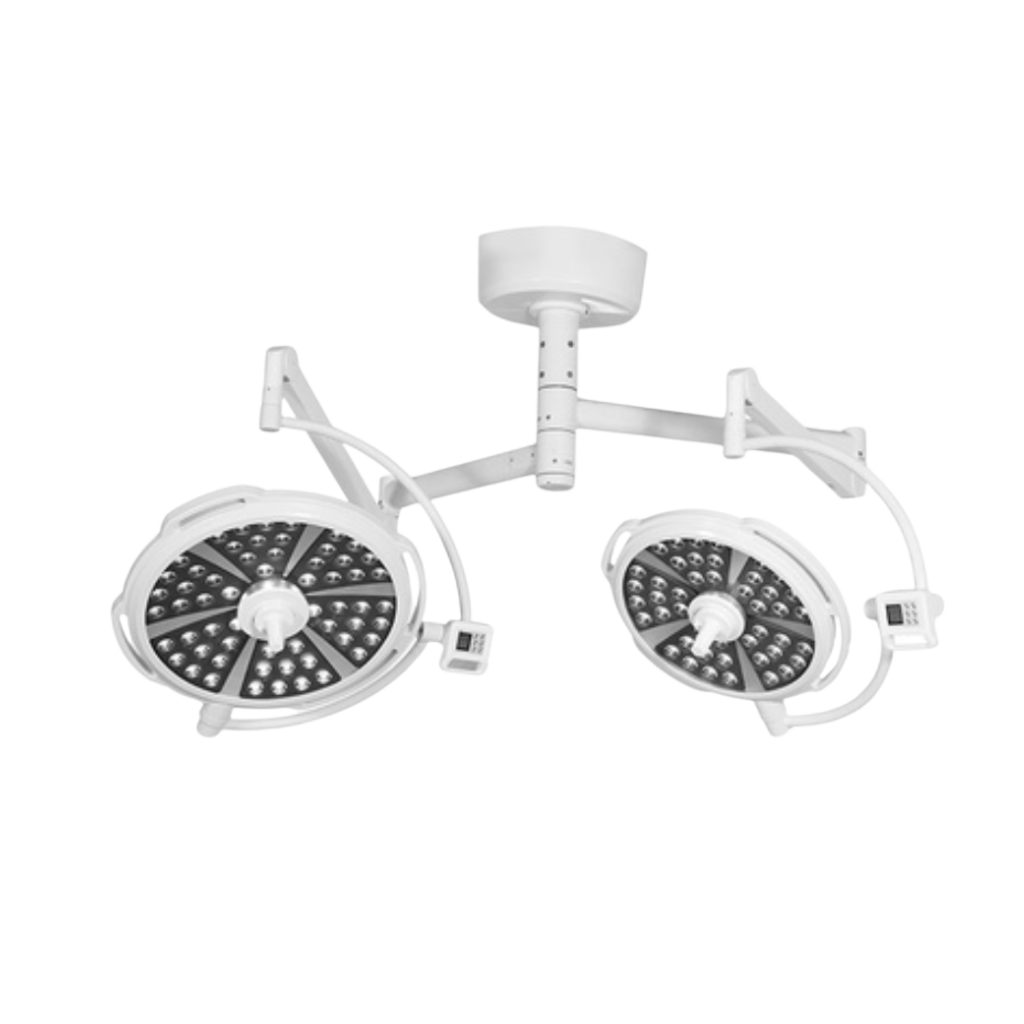

Double Dome LED Operation Lamp
(YDE700/500 B Type)
700 LED head/500 LED head
Illuminance adjustable range: 25% ~ 100%
Color Temperature: 4,000~5,000K
CRI: 95Ra
50% spot diameter (D50): 150mm/120mm
10% spot diameter (D10): 280mm/230mm
Illumination Depth: 140cm/120cm
Ultraviolet light irradiance within 40nm wave length: 0.002W/M2
Temperature at surgeon’s head: ≤2°C
Focus mode: manual
Power Supply: 220V, 50Hz
Lamp beads power: 1W*60N/1W*40N
The average life expectancy of lamp beads: 50,000 hours
Lowest installation height: 2.8~3.1m
Double Dome LED Operation Lamp
(YDE700/500 A Type)
700 LED head/500 LED head
Illuminance adjustable range: 25% ~ 100%
Color Temperature: 4,000~5,000K
CRI: 95Ra
50% spot diameter (D50): 150mm/120mm
10% spot diameter (D10): 280mm/230mm
Illumination Depth: 140cm/120cm
Ultraviolet light irradiance within 40nm wave length: 0.002W/M2
Temperature at surgeon’s head: ≤2°C
Focus mode: manual
Power Supply: 220V, 50Hz
Lamp beads power: 1W*60N/1W*45N
The average life expectancy of lamp beads: 50,000 hours
Lowest installation height: 2.8~3.1m

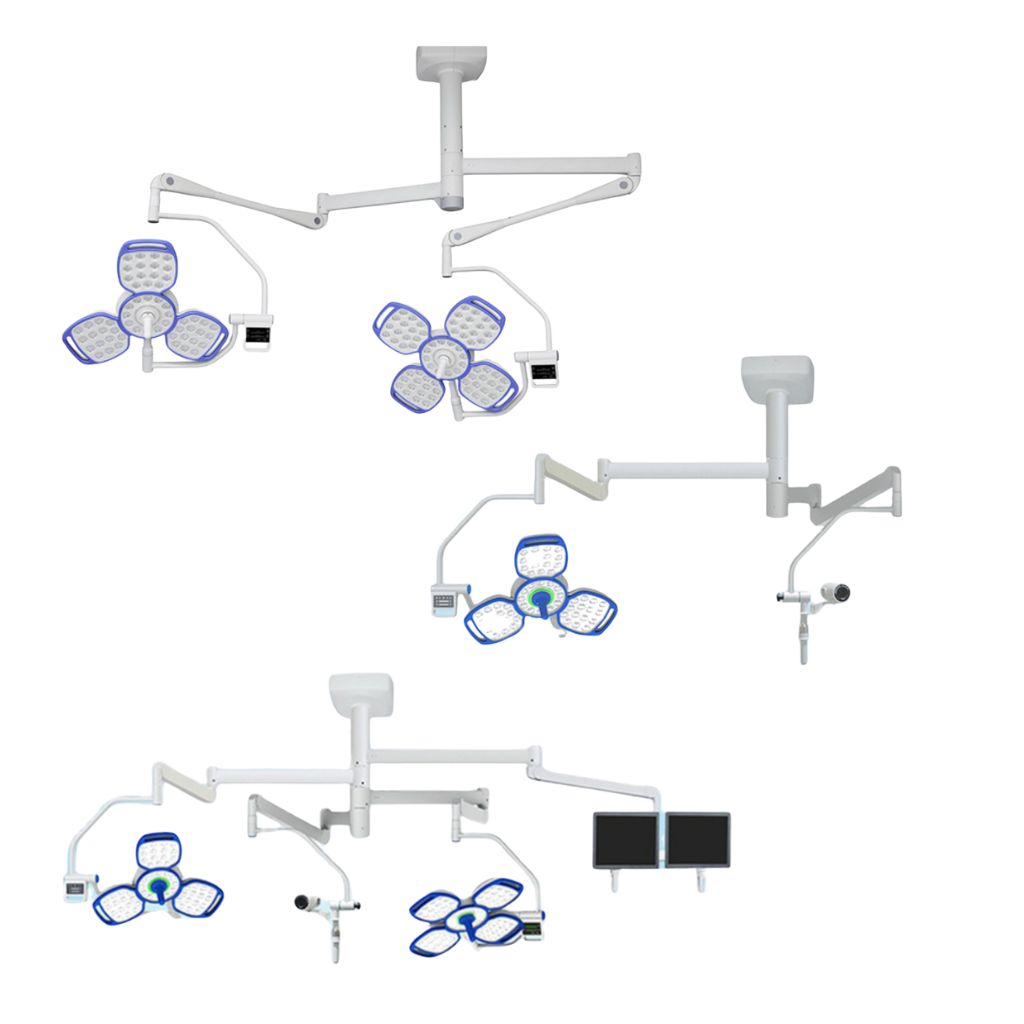

Double Heads LED Operation Lamp
(YDE700/500 G Type)
700 LED head
Diameter of head: 740mm
Illuminance: 160,000 Lux/140,000 Lux
Illuminance adjustable range: 25% ~ 100%
Color Temperature: 3,500~5,000K
CRI: 95Ra
Lamp beads power: 1W*72N/1W*57N
Spot diameter: 120~250mm
Illumination Depth: ≥120cm
Power Supply: 220V, 50Hz
Red redictive index: ≥90
The average life expectancy of lamp beads: 60,000 hours
Field uniformity(D10/D50): 0.65/0.55
Lowest installation height: 2.8~3.1m
Other Surgical Light

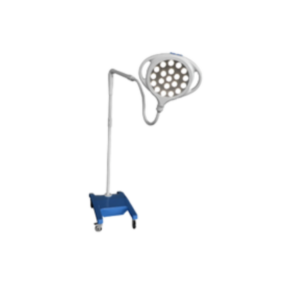

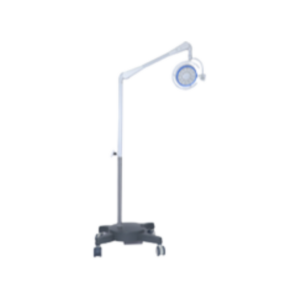

Portable LED Operation Lamp

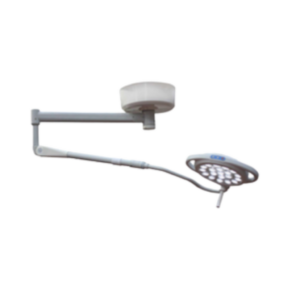

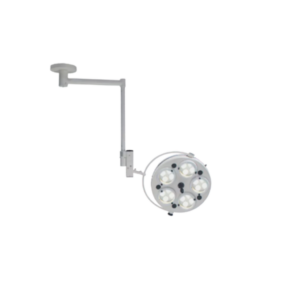

Ceiling Mounted Portable LED Operation Lamp
Portable LED Operation Lamp
Portable LED Operation Lamp

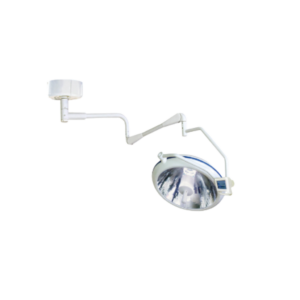

Halogen Surgical Light

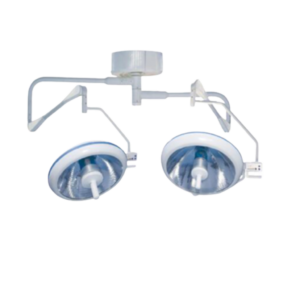

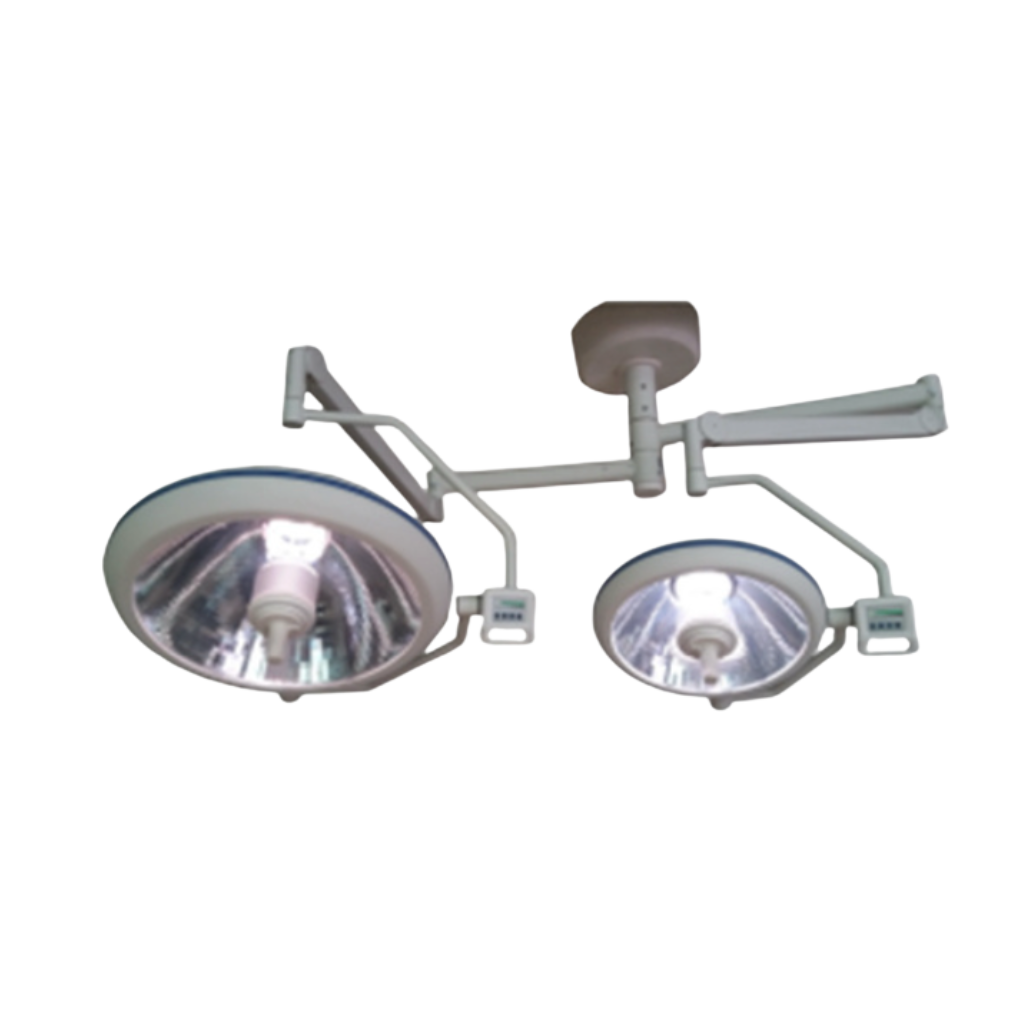

Double Dome Operation Lamp
(YDZ700/500)
70 head/50 head
Illuminance: 150,000 Lux/120,000 Lux
Color Temperature: 4,300±500K
Spot diameter: 120~320mm
Illumination depth: ≥800mm
Light adjusting mode: eight grade dimmer system
Temperature at surgeon’s head: ≤2°C
Temperature at surgical field: ≤8°C
Color indication index: ≥97%
Working distance: 55~170cm
Vertical adjustment range: 115cm
Power Supply: 220V±22V 50Hz±1Hz
Input Power: 220W
Power of bulb: 24V/150W
Bulb average life: 1,000h
Shift of major and stand-by lamps: yes
Lowest height installationn: 2,900mm
Standard height of installation: 275~310cm

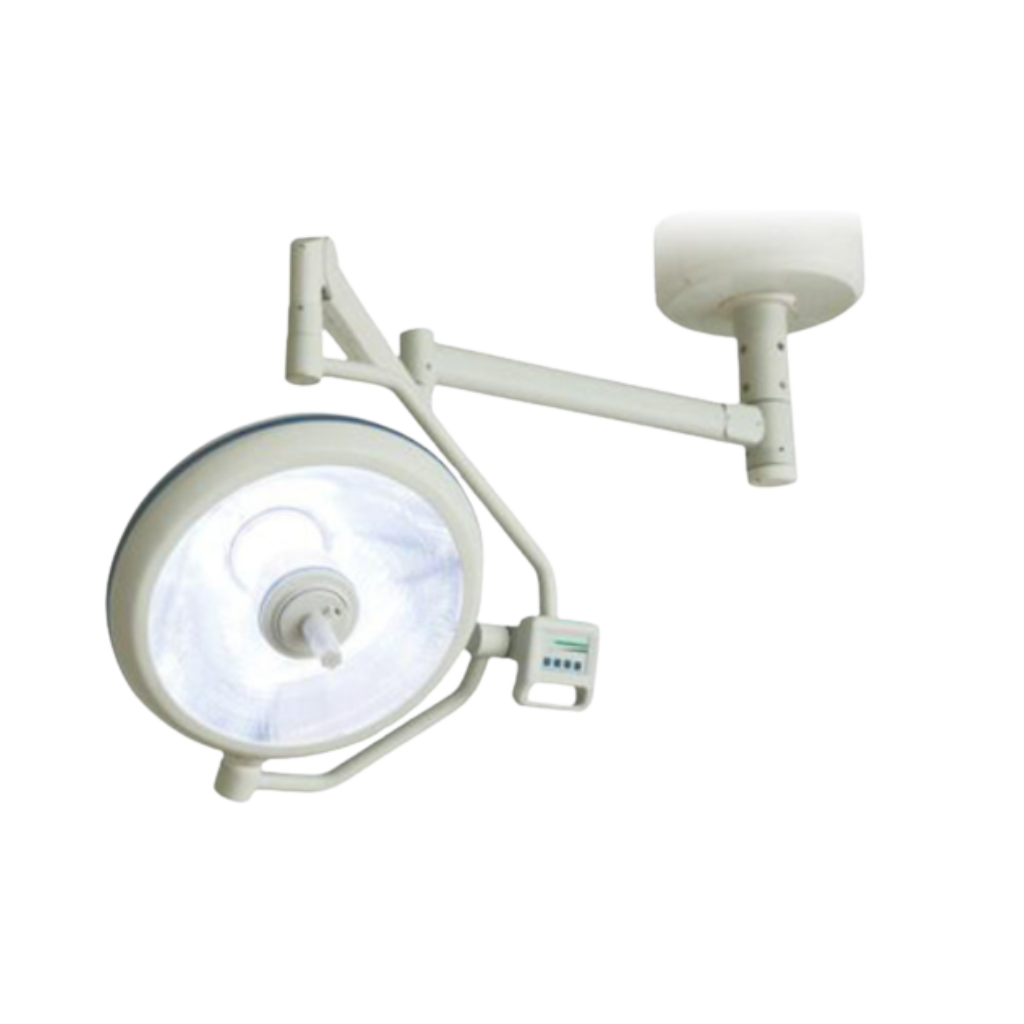

Single Dome Operation Lamp
(YDZ700)
70 head/50 head
Illuminance: 150,000 Lux/120,000 Lux
Color Temperature: 4,300±500K
Spot diameter: 120~320mm
Illumination depth: ≥800mm
Light adjusting mode: eight grade dimmer system
Temperature at surgeon’s head: ≤2°C
Temperature at surgical field: ≤8°C
Color indication index: ≥97%
Working distance: 55~170cm
Vertical adjustment range: 115cm
Power Supply: 220V±22V 50Hz±1Hz
Input Power: 220W
Power of bulb: 24V/150W
Bulb average life: 1,000h
Shift of major and stand-by lamps: yes
Lowest height installationn: 2,900mm
Standard height of installation: 275~310cm

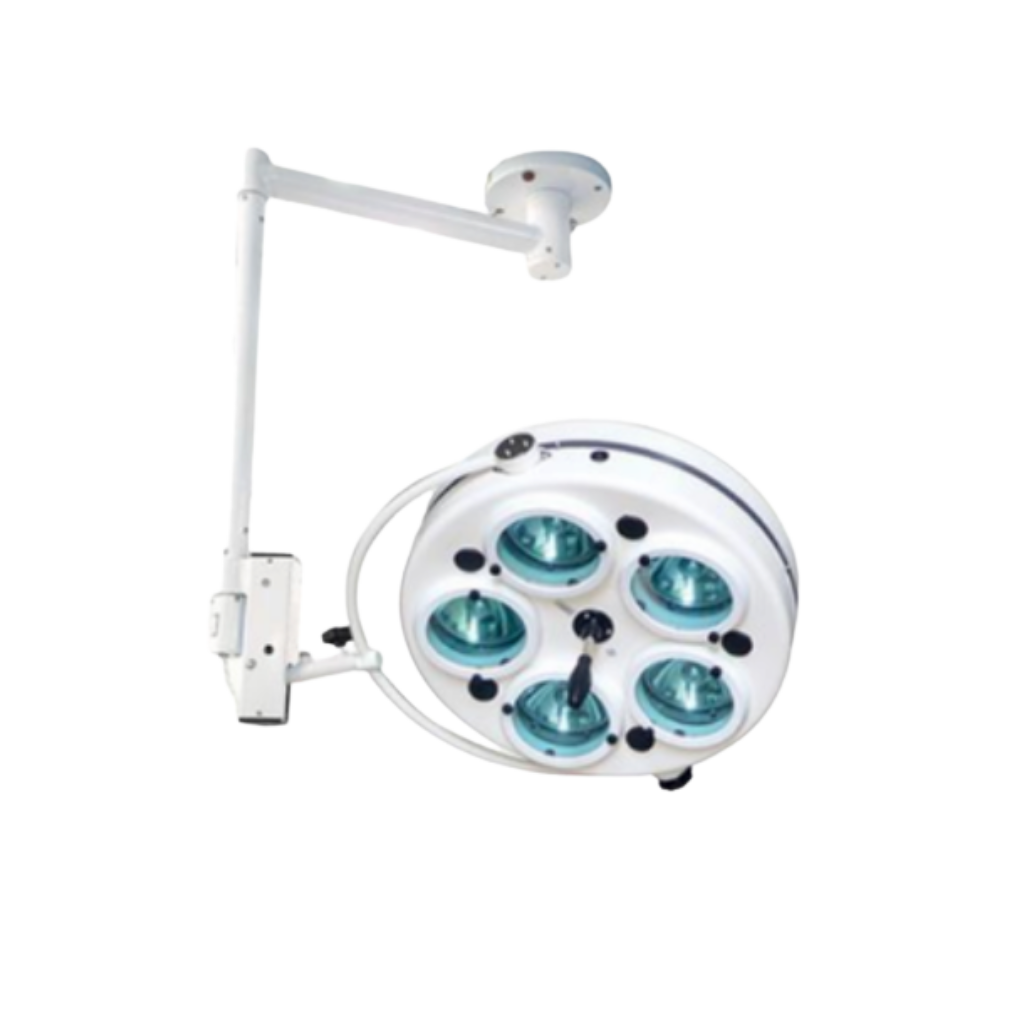

Halogen Cold Light LED 5 Holes
Cold Light
Illumination: 50,000 Lux
Color Temperature: 4,000±500K
Color rendering index: 100≥Ra≥85
Depth of light beam: 500mm
The value of the total irradiance (service range for temperature rise ≤10°C: <6m W/m2lx
Total irradiance (temperature rise on the head of patient ui: 600W/m2
Power Supply(AC): 220V±10% 50Hz DC24V
Rated voltage of bulb: 24V
Rated power of bulb: 125W
Input power(VA): 150

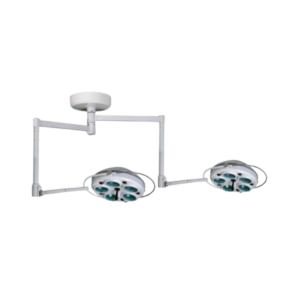

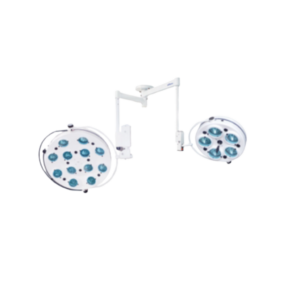

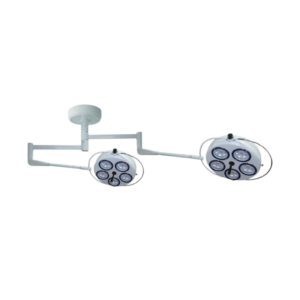

Double Dome Five LED Ceiling Light
Illumination: ≥60,000 Lux (at 1m distance)
Color Temperature: 4,500±500K
Mains voltage: AC 220V±10% 50HZ
Bulb voltage: AC 24V Bulb power
Input Power: 150VA
Height for installation: 280~320cm
Material: metal

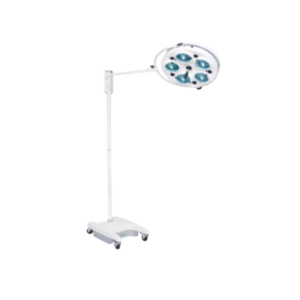

Five Hole Operation Light
Material: Aluminum Alloy
Illumination: ≥50,000 Lux
Color Temperature: 4,500±500K
Color rendering index: 85~100
Bulb Power: 24V 25W, total: 125W
Input power: 150±10%
Accessories: 24V 25W bulb
Other Related Product

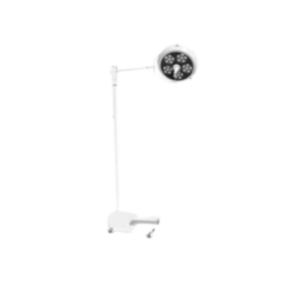

Portable Exam Light LED 4 Holes
Double Dome Operation Lamp
Single Dome Operation Lamp

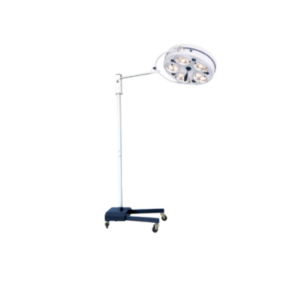

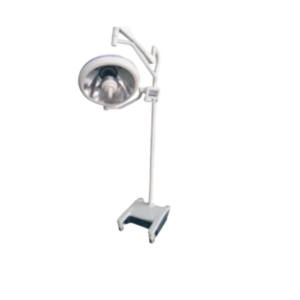

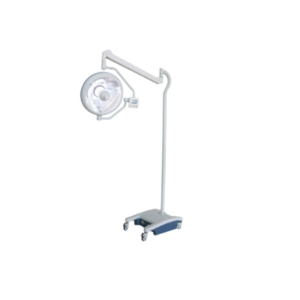

Mobile Operation Lamp
Mobile Operation Lamp
Double Dome Halogen Light

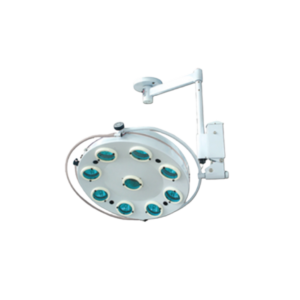

9 Reflectors Surgical Lamp
Double Dome Five Hole Ceiling Light
Five Hole LED Surgical Light
Portable Five Hole LED Surgical Light

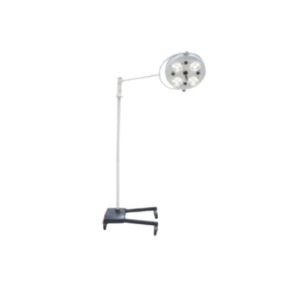

Floor Stand Four Holes LED Operation Light
