192 Element Wireless Bluetooth Ultrasound
The 192-element wireless Bluetooth ultrasound is a cutting-edge, portable imaging device designed for quick, accurate, and convenient diagnostics. With its high-density 192-element transducer, it delivers exceptional image quality, ensuring precise visualization for various clinical applications such as obstetrics, cardiology, musculoskeletal, and emergency care. Its wireless Bluetooth connectivity allows seamless real-time image transmission to smartphones, tablets, or computers, enhancing mobility and ease of use in both clinical and remote settings. Compact and user-friendly, this device empowers healthcare professionals to perform point-of-care ultrasounds with speed and efficiency.
Specifications
Experience high-quality, portable imaging with the advanced 192-element wireless Bluetooth ultrasound.
| Scanning Mode: | Electronic Array |
| Probe Type: | Linear Probe |
| Display Mode: | B, B/M, Color Doppler Version with B+Color, B+PDI, B+PW |
| Probe Element: | 192 |
| Channel of RF Circuit Board: | 64 |
| Frequency: | 7.5MHz/10MHz |
| Scan Depth: | 20/40/60/100MM |
| Probe head radius/width: | 40mm |
| Image Adjust: | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
| Cineplay: | auto and manual, frames can set as 100/200/500/1000 |
| Puncture assist function: | the function of in-plane puncture guide line, out-of-plane puncture guideline,automatic blood vessel measurement |
| Image save: | jpg, avi and DICOM format |
| Image frame rate: | 18 frames / second |
| Battery working time: | 3~5 hours(according to different probe and whether keep scan) |
| Battery charge: | by USB charge or wireless charge, take 2 hours |
| Dimension: | L156×W60×H20mm(if with transvaginal head length is 270mm) |
| Weight: | 220g |
| Wifi type: | 802.11g/20MHz/5G/450Mbps |
| Working system: | Apple iOS and Android, Windows |
Product Configuration

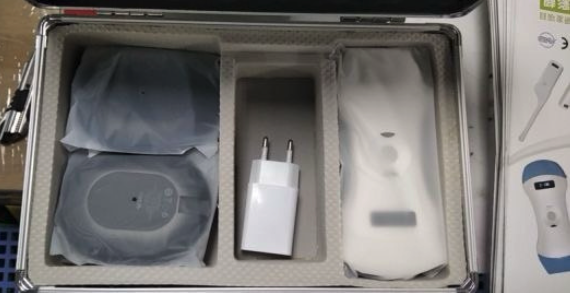

Standard Configuration
- Wireless Ultrasound Scanner x 1 unit
- USB Charging Cable x 1pc
- Power plug x 1pc
- Aluminium Suitcase x 1pc
- User's manual x 1pc
- Warranty certificate x 1pc
Optional

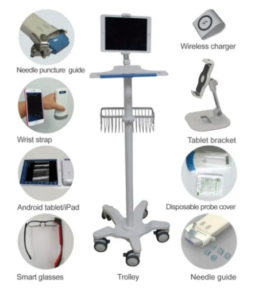

Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley
Related Products & Specifications

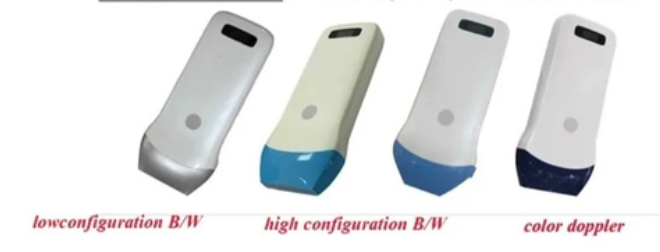

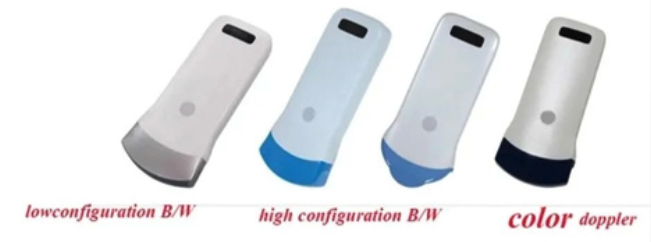

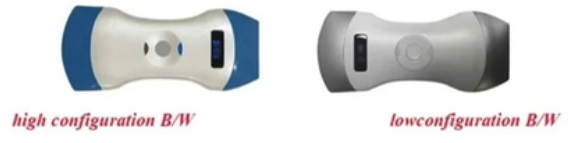

Gray head: low configuration B/W ultrasound scanner
Light blue head: High configuration B/W Ultrasound scanner
Purplish head: Color Doppler
For large order we can customize colors.
- Probe Type: Convex Probe, Linear Probe,Phased array(cardiac) Probe
- Display mode: B, B/M, Color doppler version with B+Color, B+PDI, B+PW
- Probe element: 192
- Channel of RF circuit board: 64
- Convex Probe frequency: 3.5MHz/5MHz
- Convex Probe scan depth: 90/160/220/305mm
- Convex Probe head radius/width: 45mm
- Convex Probe scan angle: 50°
- Linear Probe frequency: 7.5MHz/10MHz
- Linear Probe scan depth: 20/40/60/100mm
- Linear Probe head radius/width: 40mm
- Phased array(cardiac) Probe frequency: 3.5MHz/5MHz
- Phased array(cardiac) Convex Probe scan depth: 90/160/220/305mm
- Phased array(cardiac) Convex Probe head radius/width: 45mm
- Phased array(cardiac) Convex Probe scan angle: 80°
Product Advantage
Small and small size, easy to carry.
Wireless type without probe cable, working freely.
Waterproof design, convenient for sterilization.
Remote diagnostic convenience, capability and easy image transfer.

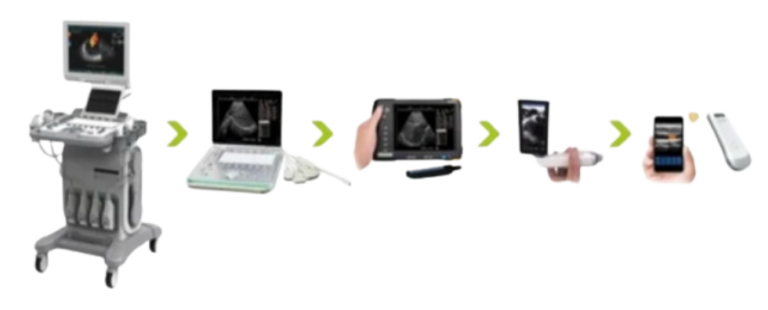

Ultrasonic diagnostic equiment miniaturization, intelligent development:
Trolley >>> Portable >>> Palm >>> Pocket Wireless >>> Pocket kit

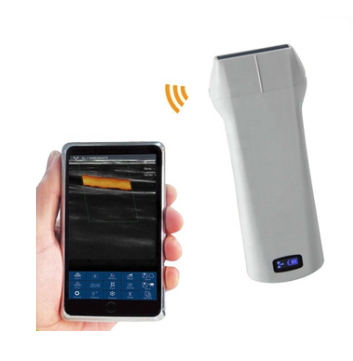

Only a probe! Just connect smart phone / tablet by wifi and it becomes a small B/Color Ultrasound scanner.
